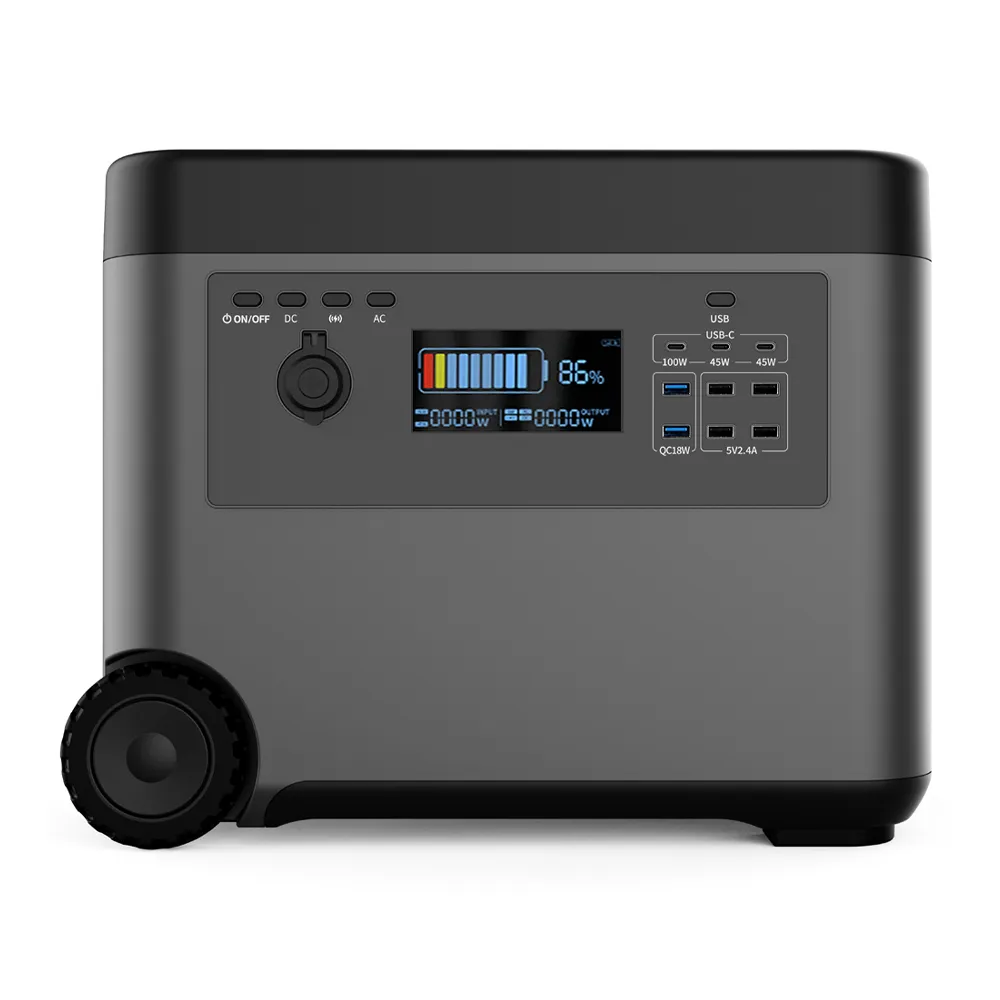

2500W Portable Power Station
- CE / FCC / PSE / RoHS
- 5-Year Warranty
High-capacity 2160Wh (675000mAh, 48V) portable power station with 2500W pure sine wave AC output (peak 4000W). Ideal for commercial, industrial, and outdoor B2B applications, supporting AC, solar, and car charging with UPS function (20ms switchover).
- 2500W Pure Sine Wave
- 800W Solar Input
- 12V/24V Car Charging
- UPS Function (20ms)
Product Demonstration Video
Technical Specifications
Basic Parameters
Model: D5
Net Weight: About 25kg
Dimension: 470.5×289×366mm
Battery Capacity: 675000mAh (45Ah, 48V, 2160Wh)
Warranty: 2 Years
Output Specifications
AC Output: 220VAC 2500W (Peak 4000W), 50/60Hz
USB-A (4×): 5V=2.4A (12W per port)
USB-A (2×): 5V=3A/9V=2A/12V=1.5A (18W)
USB-C (2×): 5-20V (45W per port)
USB-C (1×): 5-20V (100W per port)
Car Output: 12V=8.3A (100W max)
Wireless Charging: 15W
Input & Battery
AC Input: 220-240V, 1600W Fast Charge
Solar Input: 11-75V 20A (800W max)
Car Input: 12/24V (9A default)
Cycle Life: 80%+ after 2500 cycles
Protection: Overcharge/ discharge/ temp/ short circuit
Operating Temperature
Best Ambient: 20°C – 30°C
Discharge: -10°C – 40°C
Charging: 0°C – 40°C
Storage: -10°C – 40°C (Opt: 20-30°C)
Charging Time: ~1.6h (AC), ~6h (400W solar), ~17h (car)
Appearance & Interfaces
Key Interfaces & Controls
Wireless Charging Output Port
15W wireless charging for compatible devices
Main Power Button
Press for 1s to turn on/off the entire device
DC Output Switch
Controls all DC/USB/12V outputs
Wireless Charging Switch
Independent control for wireless charging output
AC Output Switch
Controls AC output (long press 3s to switch 50/60Hz)
Other Interfaces
USB-A/C ports, AC charging port, solar/car charging port, air cooling system
Display & Operation Guide
Display Icon Explanation
Power Display Bar: Visual battery level indicator
Battery Percentage: Exact remaining capacity (0-100%)
Protection Alerts: Overload/short circuit/high/low temperature
Output Indicators: AC (50/60Hz), DC, USB, wireless charging status
Input Indicators: AC/solar charging status
Air Cooling System: Active cooling status indicator
Output Operation
- Main Power
- Press the ON/OFF button for 1 second to turn on/off the device.
- Automatic shutdown after 1 minute of inactivity (all outputs off).
- AC Output
- Press AC switch to enable/disable AC output (2500W max load).
- Automatic shutdown after 8 hours of no load on AC port.
- Long press AC switch (3s) to switch between 50Hz/60Hz.
- USB/DC/Wireless Output
- USB: Press USB switch to enable/disable (auto shutdown after 8h no load).
- DC (12V): Press DC switch to enable/disable (auto shutdown after 8h no load).
- Wireless Charging: Independent switch control (15W max, auto shutdown after 8h no load).
Charging Methods & UPS Function
AC Charging
Max input power: 1600W Full charge time: ~1.6 hours Use official AC charging cable (≥15A) Built-in overload protection for charging port
Solar Charging
Input range: 11-75V 20A (800W max) Full charge (400W panel): ~6 hours MC4 to XT60 connection required Overvoltage protection (≥50V trigger)
Car Charging
Supports 12V/24V car battery Default input current: 9A Full charge time: ~17 hours Charge only when car engine is running
UPS Function (20ms Switchover)
Supports uninterrupted power supply for electrical appliances
Automatically switch to battery power within 20ms when grid fails
Non-professional UPS (no 0ms switchover)
Recommended for single device use (avoid overload)
Not suitable for data servers/workstations requiring 100% uninterrupted power
Trusted B2B Energy Storage Solution
Swalle 2500W power station is engineered for reliability and performance, with comprehensive protection systems, international certifications, and 5-year warranty. Ideal for commercial, industrial, and outdoor B2B applications across Europe and North America.
