Sodium-Ion Battery
The Ideal Lead-Acid Replacement
Dual Models: 12V/24V 100Ah | Long Cycle Life | Wide Temperature Operation | Built-in BMS Protection | Suitable for RV, Energy Storage, Base Stations & More
Product Video
Core Advantages
Sodium-ion batteries outperform traditional lead-acid batteries in lifespan, environmental adaptability, and maintenance costs
Ultra-Long Cycle Life
6000 cycles —far exceeding lead-acid batteries and reducing replacement costs significantly
Wide Temperature Operation
Discharge: -40℃~80℃ (-40°F~176°F), Charge: -20℃~55℃ (-4°F~131°F) — adapted to extreme cold/hot environments
Built-in BMS Protection
Overcharge/Over-discharge/Short Circuit/Overcurrent/Temperature protection — 100A continuous discharge, 200A peak discharge
Fast Charging
Max charging current 100A, recommended 50A — high charging efficiency, minimizing downtime
Low Self-Discharge
Far lower self-discharge rate than traditional batteries — retains charge for long-term idle use, no frequent recharging needed
IP65 Protection Rating
Dustproof and waterproof design — reliable performance in outdoor, marine, or dusty environments
Product Models
Two core models covering 12V/24V voltage requirements for diverse energy storage scenarios

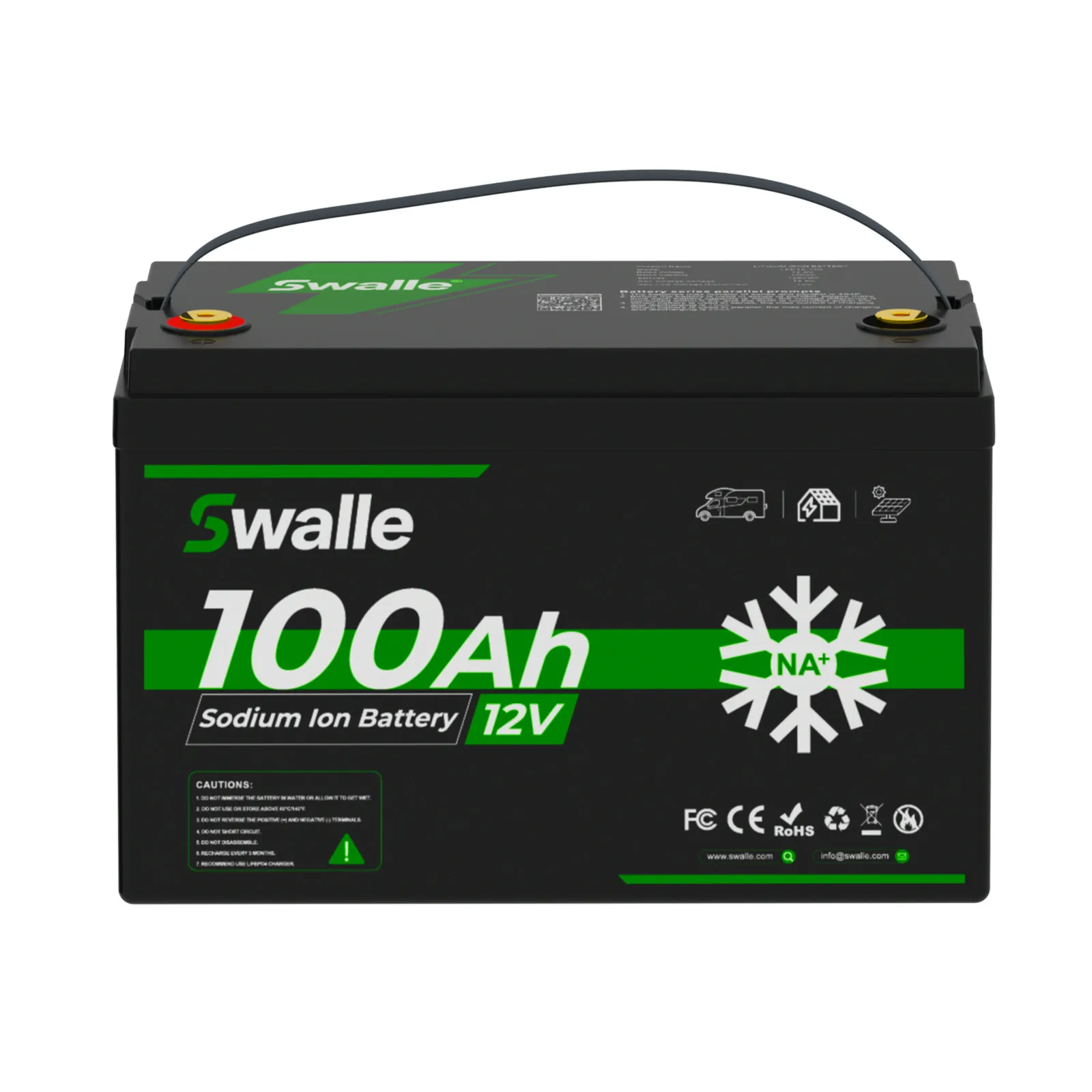

12V 100Ah Sodium-Ion Battery
Nominal Energy: 1200Wh | Cycle Life ≥6000 Cycles
- Nominal Voltage: 12V, Charge Voltage: 15.8V
- Max Continuous Charge/Discharge Current: 100A
- Weight: 15kg / 33.06lb
- Dimensions: 332×172×217mm (13.07×6.77×8.54in)
- Protection Rating: IP65 | Casing: ABS Plastic
24V 100Ah Sodium-Ion Battery
Nominal Energy: 2400Wh | Cycle Life >6000 Cycles
- Operating Voltage: 16.0~31.6V, Nominal: 24V
- Max Continuous Discharge: 100A, Peak: 200A (10s)
- Weight: Approx. 26.0kg (57.32lb)
- Dimensions: 522×240×218mm (20.55×9.45×8.58in)
- Protection Rating: IP65 | Cell Configuration: 8S10P
Technical Specifications
Precise parameters to match your application requirements and ensure stable equipment operation
12V 100Ah Sodium-Ion Battery Detailed Specifications
| Battery Pack Core | Specifications | Remarks |
|---|---|---|
| Nominal Energy | 1200Wh | 0.2C charge/discharge for voltage test |
| Nominal Capacity | 100Ah | - |
| Nominal Voltage | 12V | - |
| Max. Expansion | Up to 4S4P | Series & Parallel support |
| Internal Impedance | ≤15mΩ | AC 1KHz after standard charge |
| Cycle Life | ≥4000 cycles | 25°C, 95% DOD |
| Charging Parameters | ||
| Charging Method | CC/CV | - |
| Charge Voltage | 15.8V | - |
| Recommended Charge Current | 20A (0.2C) | 25°C, 0.2C Charge |
| Temperature Range | ||
| Normal Charge Temp | 0°C ~ 70°C | 32°F ~ 158°F |
| Normal Discharge Temp | -40°C ~ 70°C | -40°F ~ 158°F |
| Storage Temperature | -10°C ~ 50°C | 14°F ~ 122°F |
| BMS & Physical | ||
| BMS Rating | 100A | - |
| Max. Continuous Discharge | 100A | - |
| Max. Discharge Current (1s) | 500A | @ BMS 0 ~ 25°C |
| Weight | 15kg / 33.06lb | Approx. |
| Dimensions (L×W×H) | 332×172×217mm | 13.07×6.77×8.54in |
| Casing / IP Class | ABS / IP65 | Outdoor use supported |
24V 100Ah Sodium-Ion Battery Detailed Specifications
| Battery Pack Core | Specifications | Remarks |
|---|---|---|
| Operating Voltage Range | 16.0V ~ 31.6V | - |
| Nominal Voltage | 24V | - |
| Nominal Capacity | 100Ah | - |
| Nominal Energy | 2400Wh | - |
| Cycle Life | >6000 cycles | 25°C, 0.5C, 80% DOD |
| Charging Parameters | ||
| Fast Charge Voltage | 31.6±0.2V | - |
| Max. Charge Current | 100A | - |
| Discharging Parameters | ||
| Standard Discharge Current | 50A | - |
| Peak Discharge Current (10s) | 200A | - |
| Mechanical & Environment | ||
| Cell Configuration | 8S10P | Sodium-ion cells |
| Charge Temp | -20°C ~ 55°C | High temp resistance |
| Discharge Temp | -40°C ~ 80°C | Extreme cold resistance |
| Weight | Approx. 26.0kg | 57.32lb |
| Product Dimensions | 522×240×218mm | 20.55×9.45×8.58in |
| Protection Class | IP65 | Waterproof design |
Applications
Covering residential, commercial, and industrial energy storage needs for diverse power supply scenarios
RV & Outdoor Storage
Lightweight design with wide temperature adaptability — stable power for RVs and camping equipment, supporting high-power devices like induction cookers and air conditioners
Residential Energy Storage
Pair with solar/wind systems to store clean energy — backup power for outages, low self-discharge, and low long-term operating costs
Base Station Backup Power
IP65 protection for outdoor base station environments — long cycle life reduces replacement frequency and lowers maintenance costs
Electric Transportation
Power/auxiliary supply for electric vehicles and boats — high discharge power and fast charging meet transportation scenario demands
